Operation Shoehorn
In which we learn how to maneuver a 38-ton piece of a aircraft with inches to spare.
What happens when you are trying to build a giant aircraft that is so large it needs a new dedicated record-breaking massive assembly hall, but the new facility isn’t ready in time?
You figure out what space is available elsewhere so you can make a start.
Construction on the giant Brabazon aircraft started, not in the specially built “Brab Hanger” but in an existing long, but narrow, older flight shed at the Bristol Aeroplane Company facility at Filton. Located at the top of a hill on the other side of the facility from the under-construction hanger, No. 2 Flight Shed was just long enough to accommodate the planned 170-foot fuselage length of the aircraft. However, it also had supporting beams throughout its structure which meant that jigs and equipment had to be carefully located to provide the maximum assembly space.
After two years of work the fuselage was completed, but now came the question of just how to get it out.

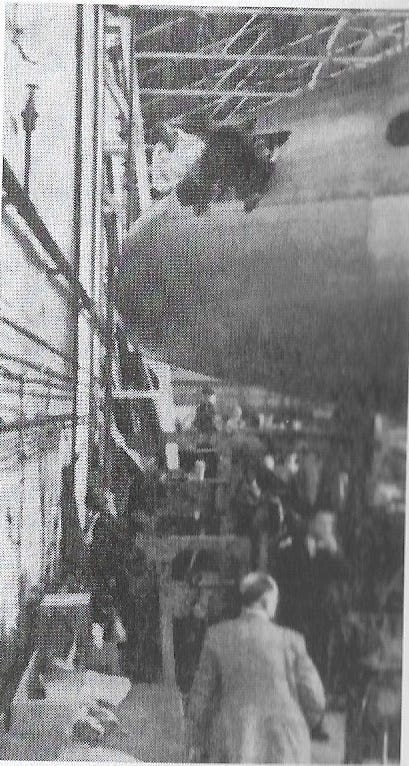

The answer was “Operation Shoehorn.” Calculations were made and it was discovered that if a heating unit was removed from the wall of the Flight Shed, and the nose cone removed from the aircraft then there would be literal inches to spare in which to maneuver what was now a 38-ton component consisting of the fuselage, the inner wings and engine mounts, the tailplane, and the stub of the vertical fin.

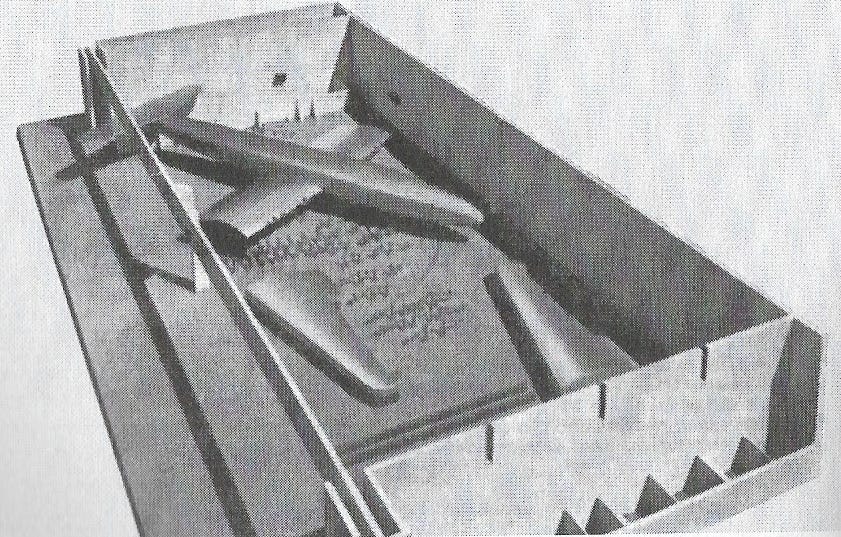

On Saturday 4 October 1947 a turntable was positioned under the starboard undercarriage wheels and a six-man team started to rotate the great aircraft with the aim of moving it through around sixty degrees so that the tail would be lined up outside the Flight Shed. The tolerances and movements needed to be inch-perfect, for there was just 20 in clearance from the top of the fin stub to the roof, 28 inches from the tailplane tip to the shed’s inner wall, and just 15 inches from the nose to the shed’s north wall.
Once it was out a tractor was connected to the nose undercarriage leg for towing the aircraft along specially reinforced wheel tracks to the assembly hall. The whole operation was carried out without a hitch starting at 7:30 in the morning, and by 1:30 in the afternoon the Brabazon was sitting in its new home awaiting the final stages of construction. A task that would take another two years to complete.
